Description

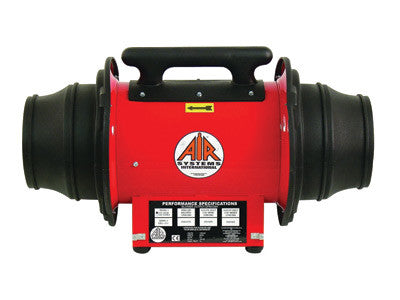

Air Systems International Explosion-Proof Electric Axial Fan measuring 12 1/2" X 16 3/4" X 16" has 10" duct adapter for intake and exhaust and 10" power cord without plug. It has steel frame with red powder coat and rubber base feet. 1-Phase continuous duty fan features power rating of 1/3 HP, voltage rating of 115 VAC and frequency of 60 Hz. It has a flow rate of 1390 cfm and has inlet/exhaust flange made of molded conductive polyethylene. Fan with built-in on/off switch has dual grounding lug installed on steel housing and automatic reset thermal overload. Fan is UL and CSA approved.
Features
Explosion-proof Electric Motor: 1/3, 115 VAC, 1-phase, 60 Hz. UL and CSA approved for Class 1, Div. 1, Groups C and D, Class II, Groups E, F, and G - built-in on/off switch
Automatic reset thermal overload
Dual grounding lugs installed on steel housing
Frame: All steel, powder coat red with rubber base feet
Inlet/Exhaust flange made of molded conductive polyethylene
Power cord: 10ft. power cord without plug, user wired per NEC requirements
72 dbA @ 3ft
973cfm, 25ft. duct, 1 - 90° bend
Specifications
CSA Certified UL Listed
Product Attributes
Size Description
» 10"
Product Type
» Electric Axial Fan
Free Air (CFM)
» 1390
Material
» Steel
Rating
» 1/3 hp, 115 VAC, 60 Hz
