Description
Product has 25 day lead time.
Performance Benefits

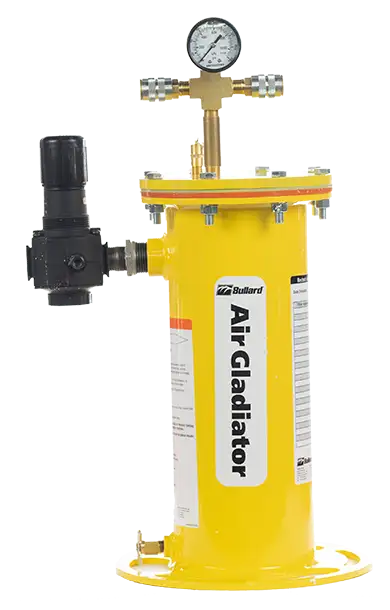

AirGladiator provides 7-stage filtration to the required Grade D breathable air that when combined with carbon monoxide (CO) monitoring and other safeguards provides users with cleaner, more comfortable air. They may also be used to supply drier, cleaner air to tools, air monitoring box, and pneumatic systems.
Design
Sturdy Base and Mounting Versatility
• Flat base for securing to floor or built-in wall mount
Heavy duty
• Powder-coated steel construction for rugged industrial environments
High Capacity
• Large disposable filter cartridge for longer service life
Lightweight
• Weighs 26-32 pounds, depending on model
Portable
• Built-in wall mounting bracket may also be used as a carrying handle
Options
• One, two or six outlets
7-Stage Filtration
1. Moisture is separated from air
2. Carded cotton removes particulates
3. Activated alumina absorbs oil and moisture
4 Activated charcoal removes odors and moisture
5. Felt material removes particulates
6. Carded cotton removes particulates
7. Respiratory felt at final stage acts as a final filter before air is
transferred to worker or air driven tools
AirGladiator Technical Specifications
AirLine Filter: AGLDTR6
Max Air Flow Rate: 75cfm (2120 Lpm)
Inlet Connection: 1" NPT (Fem.)
Outlet Connection: 6 outlets 3/8" NPT (Fem.)
Relief Valve: 125 psig (8.36 bar)
Tank Diameter: 51/2" (14cm)
Height: 18.5" (47 cm)
Weight: 32 Lb (14.5 KG)
