Description

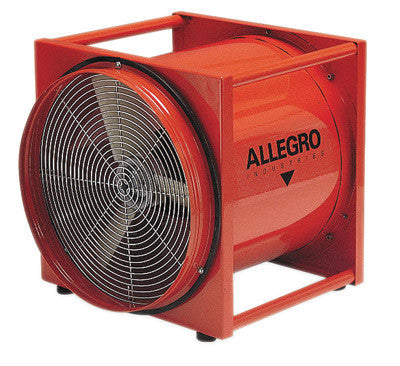

Allegro® High Output Blower measuring 20" features a 16 ga cold rolled steel housing and the 2 HP motor offers a flow rate of 7500 CFM. It offers a flow rate of 6700 cfm for one 90 deg bend and a flow rate of 6130 cfm for two 90 deg bends. Blower features a steel or zinc plated grill, 4 rubber feet and accommodates a 4-blade impeller. The interchangeable flange facilitates intake or exhaust mounting and the carry handles makes it easy to transport. It has the specifications of 21/10.5 A, 115/230 VAC.
Features
Complete unit epoxy powder coated in "safety orange"
Interchangeable flange for intake/exhaust side mounting
16 gauge cold rolled steel housing
Bolted motor mount construction
Integrated carrying handles on four sides
Steel/chrome plated grill
Equipped with four rubber feet
Stackable design
Glass reinforced polypropylene (PPG) four blade fan with aluminum hub
Moving fan mounted 1 5/8" (4.12cm) from grill for safety, grill gap-5/16" (.79cm)
Product Attributes
Size Description
» 19" X 22" X 22 1/2"
Product Type
» Axial Blower
Free Air (CFM)
» 7500
Material
» Cold Rolled Steel
Rating
» 115/230 VAC, 2 hp, 21/10.5 A Motor
